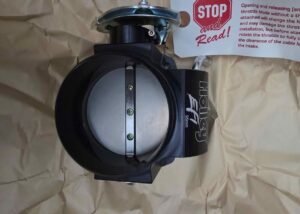

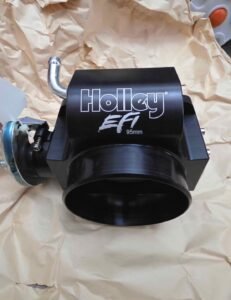

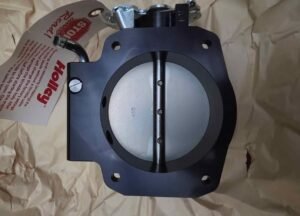

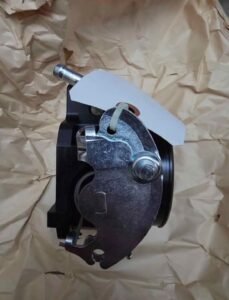

Holley 95mm LS Throttle Body

Holley 95mm LS Throttle Body is built for LS-based performance applications, and it features a cable-driven design with a 95 mm bore. Additionally, the low-RPM taper supports smoother drivability while still providing the airflow capacity demanded by modified street, strip, restomod, swap, and race builds.

Moreover, the 95mm ls throttle body is a strong option for enthusiasts who need a larger inlet opening without immediately moving to an oversized 102 mm or 105 mm setup. In many cases, it is commonly considered for LS2, LS3, LS7, aftermarket intake manifold, and EFI conversion projects where throttle-cable operation, correct intake flange size, and tune compatibility matter.

Before purchasing, whether you are replacing an existing throttle body or building a complete induction system, confirm the intake manifold opening, four-bolt flange pattern, throttle linkage, cable bracket, gasket, air intake tube, sensor setup, and ECU calibration requirements.

Key Benefits of a 95mm Throttle Body

A high-quality 95mm throttle body can improve the airflow path between the intake tube and intake manifold when the rest of the engine combination supports the added capacity. However, performance results depend on camshaft choice, cylinder heads, intake manifold design, exhaust flow, fuel system capacity, engine displacement, and professional tuning.

Furthermore, key advantages include:

• Larger 95 mm throttle opening for high-flow LS intake combinations
• Billet construction for a performance-focused engine bay setup
• Low-RPM taper designed to support usable street driving behavior
• Cable-driven operation for compatible mechanical throttle applications
• Idle bleed adjustment capability for idle-control fine-tuning
• TPS clocking adjustment to help with sensor positioning
• Closable PCV passage provision for flexible installation planning
• Suitable for naturally aspirated and certain forced-induction engine combinations when properly matched and tuned

As a result, the Holley 95mm throttle body can be a practical upgrade for builders who want strong airflow potential while maintaining a street-friendly throttle feel.

Features of the Holley EFI Billet 95mm LS Throttle Body

The Holley EFI 95mm throttle body is designed around LS performance applications that use a compatible four-bolt intake opening and cable throttle arrangement. In addition, its 95 mm bore provides a substantial airflow path, while the low-RPM taper helps make the throttle body more suitable for builds that spend time on the street as well as at the track.

Performance-Focused Airflow Design

The Holley EFI billet 95mm LS throttle body uses a large-bore design intended for higher-flow intake systems. Therefore, it is best matched with an intake manifold that has a compatible 90–95 mm or appropriately ported throttle body opening.

Adjustment Features for Easier Setup

This performance throttle body includes useful tuning and installation features. For example:

• Idle bleed adjustment
• TPS clocking capability
• Closable PCV passage valve
• Cable-drive throttle operation
• Four-bolt LS-style mounting format

Consequently, these details can make setup easier for engine builders, tuners, and LS swap enthusiasts who need more control over idle quality, throttle linkage alignment, and PCV routing.

How the 95mm LS Throttle Body Works

A throttle body controls the amount of air entering the engine. When the driver presses the accelerator pedal, the throttle blade opens and allows more air to move into the intake manifold. Subsequently, the ECU or carburetor-style fuel system adjusts fueling to match airflow demand.

With a 95mm ls throttle body, the larger bore can reduce airflow restriction in a properly matched performance combination. However, installing a larger throttle body alone does not guarantee horsepower gains. Instead, for best results, match it with the right intake manifold, intake tubing, camshaft, cylinder head flow, fuel delivery system, and engine tune.

Installation and Tuning Process

Before installation, follow these essential steps:

1. First, verify that your intake manifold accepts a compatible 95 mm four-bolt throttle body.
2. Next, confirm that your build uses a cable-driven throttle system rather than drive-by-wire.
3. Then, check throttle cable bracket and linkage compatibility.
4. After that, inspect gasket size, intake opening, air filter tube diameter, and PCV routing.
5. Subsequently, install the throttle body using correct torque procedures.
6. Then, calibrate the TPS and adjust idle settings where required.
7. Finally, complete ECU tuning or dyno tuning to support the upgraded airflow path.

As a result, proper calibration is important because airflow changes may affect idle stability, throttle response, air-fuel ratio targets, and part-throttle drivability.

Fitment and Platform Compatibility Information

The Holley EFI billet 95mm LS throttle body is an LS-focused product. Therefore, it should not be assumed to fit every 95 mm throttle body application simply because the bore size is similar.

For example, the following search terms refer to different engine families, vehicle platforms, or product configurations and require separate fitment verification:

• 95mm throttle body 5.7 hemi
• 95mm throttle body 6.4 hemi
• 2016 camaro ss 95mm throttle body
• 95mm throttle body lt1
• bbk 95mm throttle body
• katech 95mm throttle body
• lt5 95mm throttle body

For instance, a 95mm throttle body 5.7 hemi or 95mm throttle body 6.4 hemi is intended for Mopar HEMI applications and may use a different bolt pattern, electronic connector, throttle-control method, ECU strategy, and intake manifold design. Likewise, a 2016 camaro ss 95mm throttle body or 95mm throttle body lt1 search usually relates to GM LT1 applications, which can use different factory electronic throttle systems and intake configurations than a cable-driven LS setup.

Similarly, a bbk 95mm throttle body, katech 95mm throttle body, or lt5 95mm throttle body may have platform-specific design differences. Therefore, always compare exact part numbers, mounting flange, electronic or cable actuation type, throttle blade orientation, gasket dimensions, intake manifold port size, and tuning requirements before purchase.

Why Choose a Holley EFI 95mm Throttle Body?

The Holley 95mm throttle body is a strong choice for LS builders who value compatibility-focused design, performance airflow capability, and useful installation adjustments. Additionally, Holley’s LS throttle body range includes multiple bore sizes, allowing builders to select an option that better suits their intake manifold and power goals.

Choose this setup when you need:

• A cable-driven LS throttle body
• A 95 mm bore for a matched intake manifold
• A street-and-performance-friendly tapered inlet design
• Better control over idle and TPS positioning
• A premium billet throttle body for an LS engine build
• A reliable component for engine swaps, EFI conversions, restomods, and race projects

Industry-Relevant Performance Considerations

Throttle body selection should always be based on the complete engine combination. While an oversized bore can be helpful for a high-airflow engine, it may not provide meaningful results on a mostly stock combination with a restrictive intake manifold or unoptimized tune.

For best performance, consider:

• Engine displacement and RPM range
• Intake manifold runner size and throttle opening
• Naturally aspirated, supercharged, or turbocharged setup
• Cylinder head airflow capability
• Camshaft specifications
• Fuel injector size and fuel pressure
• Mass airflow sensor or speed-density tuning strategy
• Throttle cable, linkage, and bracket geometry
• Professional dyno tuning and air-fuel ratio verification

Ultimately, a properly matched Holley EFI 95mm throttle body can support a cleaner induction path and stronger airflow potential. Nevertheless, correct fitment and calibration remain the most important parts of the upgrade.
