Katech/NW 103MM TB for LTx

Katech/NW 103MM TB for LTx

Upgrade your Gen V LT engine with the Katech/NW 103MM TB for LTx. This large-bore electronic throttle body targets performance builds in Corvette, Camaro, CTS-V, and other LT-platform vehicles. Moreover, it suits enthusiasts who need a properly matched 103mm inlet instead of a basic stock replacement.

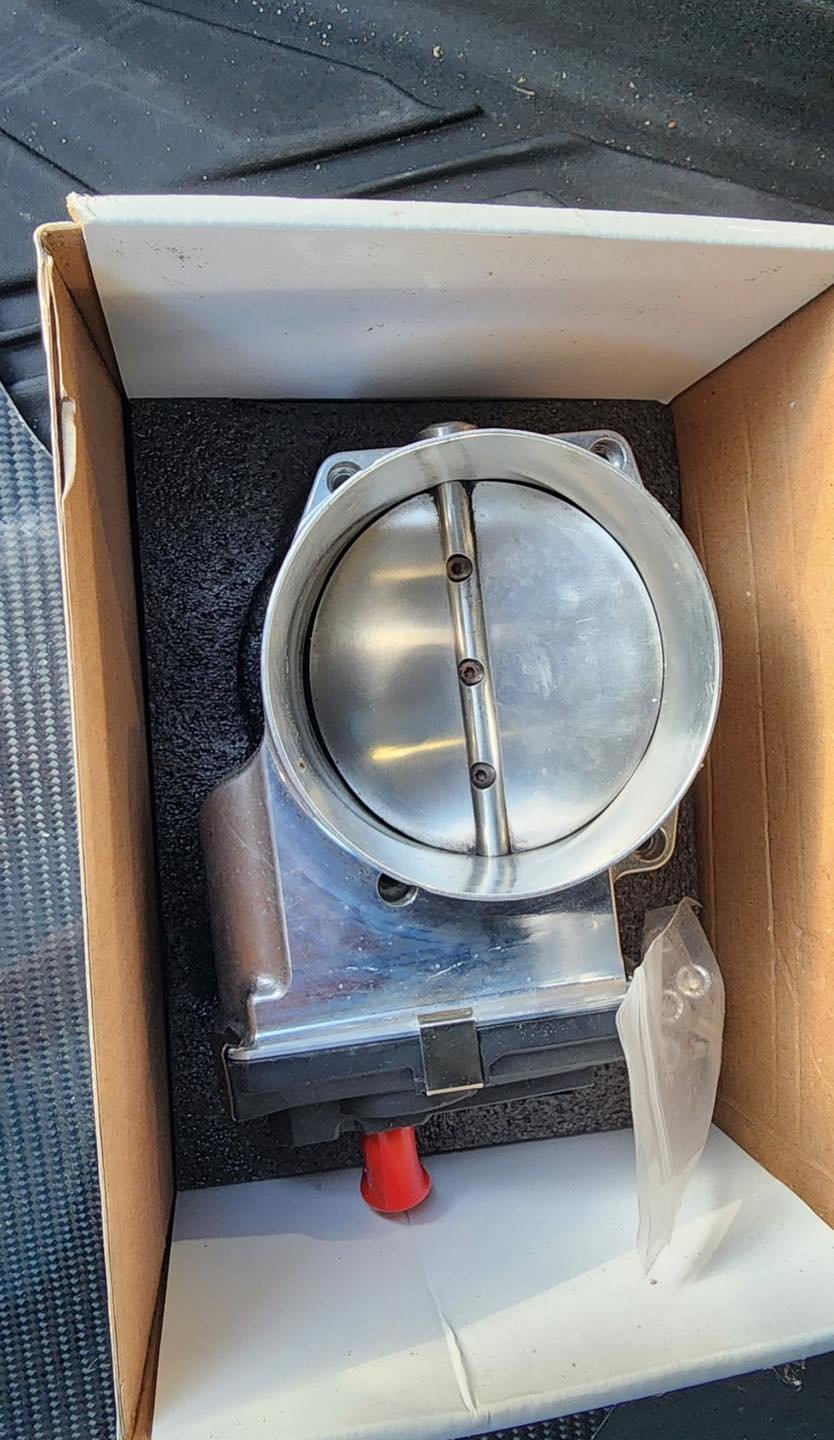

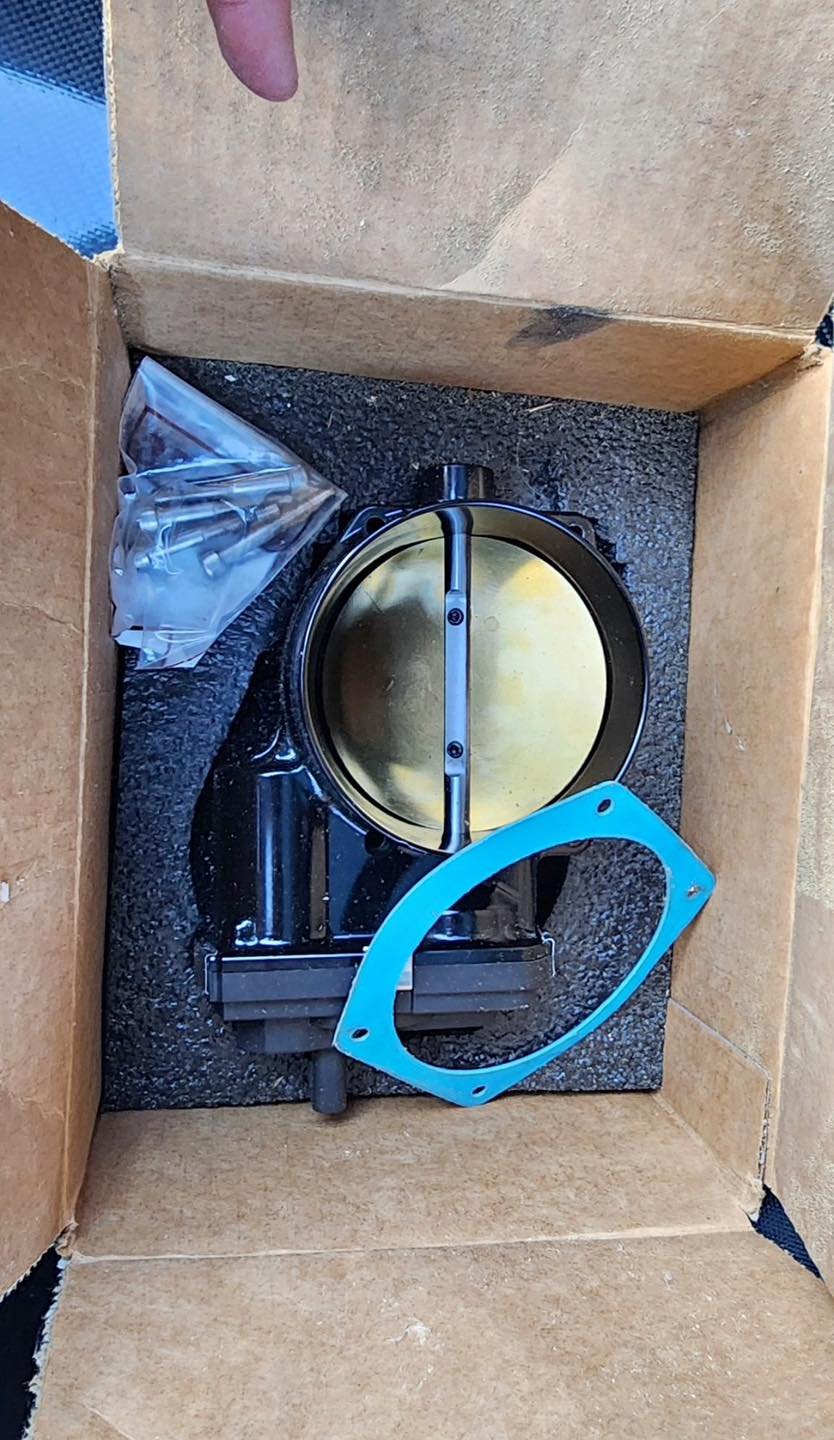

The katech 103mm throttle body features a 103mm blade and billet aluminum construction. In addition, it uses GM electronics and a precision-machined inlet to improve airflow. As a result, this design supports compatible intake manifolds, ported supercharger snouts, and high-performance induction systems. Therefore, it works well for naturally aspirated and supercharged builds where airflow demand exceeds stock limits.

Key Benefits of a 103mm LT Throttle Body

A larger throttle body can remove intake restrictions when paired with the right parts. For example, the 103mm design helps improve throttle response and airflow. Furthermore, it supports better engine breathing when all components match correctly.

Key benefits include:

• 103mm throttle blade for increased airflow
• Billet aluminum body for strength and durability
• GM electronic throttle control compatibility
• 5-axis CNC-machined inlet for efficient airflow
• Clear or black anodized finish for corrosion resistance
• Suitable for high-performance naturally aspirated and forced-induction builds
• Works well with ported blower snouts and aftermarket intake manifolds

However, the katech 103mm throttle body hp gain depends on your setup. In other words, the throttle body alone does not determine gains. Instead, results vary based on camshaft, intake manifold, port work, supercharger setup, exhaust, fuel system, and tuning. Consequently, a matched combination delivers the best results.

Features and Fitment for LT Engines

The katech 103mm throttle body lt1 fits C7 Corvette LT1 and sixth-gen Camaro LT1 builds with an MSD intake or similar 103mm opening. Therefore, the throttle body must match the intake diameter and bolt pattern for proper installation.

For boosted setups, the katech 103mm throttle body lt4 fits C7 Corvette LT4, V3 CTS-V LT4, and Gen 6 Camaro LT4 builds. However, these setups require a ported supercharger snout. Additionally, some aftermarket superchargers and intakes also support a 103mm inlet.

Important Compatibility Notes

This throttle body does not replace every factory LT intake system. For instance, it does not fit a stock LT1 intake manifold. Likewise, it does not fit an unported LT4 supercharger inlet. Because these openings are too small for a 103mm match, proper compatibility is essential. Therefore, always confirm fitment and plan for proper tuning before installation.

Before ordering, check:

• Engine platform: LT1, LT4, LT5, or similar
• Intake manifold or blower snout size
• Bolt pattern and adapter needs
• Porting requirements for your setup
• Tuning needs for airflow and drivability
• Clearance with intake tubing and accessories

How the Katech 103mm Throttle Body Works

The throttle body controls airflow into the engine. When you press the accelerator, the throttle blade opens. As a result, more air enters the intake. Then, the ECU adjusts fuel, spark, and throttle angle to maintain proper operation.

The katech 103mm throttle body camaro works best with a fully upgraded airflow path. For example, a sixth-gen Camaro LT1 with an MSD intake, cold-air intake, headers, camshaft, and custom tune benefits more than a stock setup.

For LT4 builds, use a ported supercharger snout and matched inlet system. This setup maintains smooth airflow. Otherwise, mismatched openings can create airflow steps. Therefore, proper port matching and tuning ensure the best results.

Why Choose a 103mm Billet Throttle Body?

A billet throttle body offers a stronger and more precise upgrade than a ported stock unit. In addition, the 103mm blade and machined inlet support higher airflow demands. As a result, this design suits builds with upgraded intake systems.

Choose this upgrade if you want:

• Increased airflow for a modified LT engine
• A larger throttle body for a 103mm intake
• Compatibility with a ported LT4 blower snout
• Better performance from a high-flow intake system
• Durable billet construction
• Support for future engine upgrades

Industry-Relevant Performance Information

Many enthusiasts search corvetteforum katech 103mm throttle body lt4 to compare real-world results. As a result, these discussions cover fitment, installation, and tuning. In addition, they provide feedback from Corvette, Camaro, and CTS-V owners.

When reading katech 103mm throttle body reviews, focus on:

• Vehicle and engine setup
• Intake or supercharger configuration
• Porting details
• Tuning results
• Throttle response and idle quality
• Dyno comparisons
• Intake and coupler compatibility
• Long-term drivability

Although a large throttle body can improve performance, it is not a universal bolt-on solution. Therefore, you must match it with the correct intake and tuning.
